RAM ENGINEERS
Specialist in CNC Machining / Engineering services
SERVICES
LATHE OPERATIONS
General operation on lathe with access to both manual as well as automated lathes
CNC OPERATIONS
A range of operations can be performed to manufacture various kinds of parts
SLOTTING / BORING
General slotting and boring operations with precision and professional finish , perfect for producing reliable ,high quality parts
Facilities & Tools

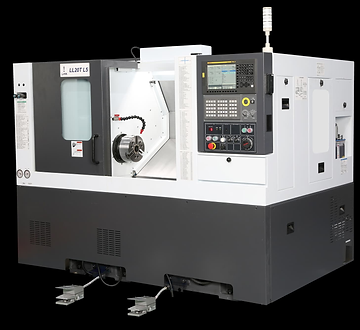

LL20T L5 CNC Turning Center
At Ram Enterprises, we utilize the LL20T L5 CNC Turning Center from Lakshmi Machine Works (LMW) to deliver high-precision machining solutions. This advanced machine is engineered for efficiency and versatility, making it ideal for various industries, including pumps, valves, oil & gas, and general engineering.
Key Specifications:
-
Chuck Size: 8" (210 mm)
-
Maximum Turning Diameter: 320 mm
-
Maximum Turning Length: 500 mm
-
Spindle Speed: Up to 3,500 rpm
-
Spindle Motor Power: 9/11 kW (Continuous/15 Min)
-
Tool Turret: 8 stations, bi-directional indexing
-
Rapid Traverse Rates: X-axis: 30 m/min, Z-axis: 36 m/min
-
CNC Controller: Fanuc Series oi mate -TC
The LL20T L5's robust construction and advanced features enable us to achieve exceptional accuracy and repeatability in our machining processes. Its high-speed capabilities and efficient tool handling reduce cycle times, enhancing overall productivity.
Bhavya Machine Tools 10" (250 mm) Slotting Machine
At Ram Enterprises, we utilize the Bhavya Machine Tools 10-inch (250 mm) Slotting Machine to deliver precise and efficient slotting operations. This robust machine is engineered for versatility, making it ideal for various industries, including automotive, construction, and general engineering.
Key Specifications:
-
Adjustable Stroke: 10 to 250 mm
-
Longitudinal Movement: 230 mm
-
Cross Movement: 110 mm
-
Ram Adjustment: 250 mm
-
Column to Ram Distance: 330 mm
-
Table to Ram Distance: 410 mm
-
Table Size: 280 x 335 mm
-
Speed Adjustment: 3-speed settings
-
Motor Power: 1.5 HP
-
Machine Dimensions (L x W x H): 1150 x 600 x 1375 mm
The machine's sturdy construction ensures vibration-free operation, enhancing precision and surface finish. Its versatility allows for the creation of slots, grooves, and keyways in various materials, making it a valuable asset in our machining capabilities.

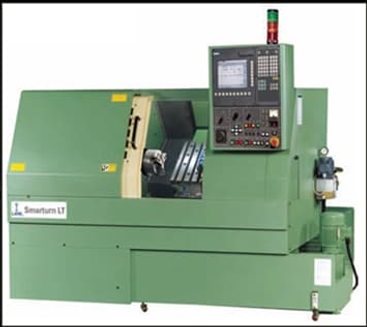

LMW Smarturn CNC Turning Center
At Ram Enterprises, we employ the LMW Smarturn CNC Turning Center to deliver high-precision machining solutions. This compact yet robust machine is engineered for efficiency and versatility, making it ideal for various industries, including automotive, aerospace, and general engineering.
Key Specifications:
-
Chuck Size: 5", 6", or 8"
-
Maximum Turning Diameter: Up to 290 mm
-
Maximum Turning Length: Up to 370 mm
-
Spindle Bore: Up to 53 mm
-
Spindle Speed: Up to 4,500 rpm
-
Spindle Motor Power: 5.5 kW to 10.5 kW
-
Tool Turret: 8-station hydraulic turret
-
Rapid Traverse Rates: X-axis: 20 m/min, Z-axis: 20 m/min
The Smarturn's high-precision spindle, equipped with large diameter P4 class bearings, and its rigid feed mechanism ensure machining to very close tolerances. Pre-tensioned ballscrews and linear motion guideways contribute to excellent part-to-part repeatability. The machine's compact design and advanced features enable us to achieve exceptional accuracy and efficiency in our machining processes.

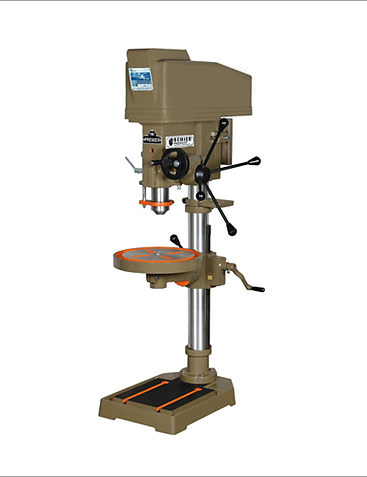

Premier 20 mm Pillar Drill Machine
At Ram Enterprises, we utilize the Premier 20 mm Pillar Drill Machine to deliver precise and efficient drilling operations. This robust machine is engineered for versatility, making it ideal for various industries, including automotive, construction, and general engineering.
Key Specifications:
Drilling Capacity: 20 mm
Spindle Nose Taper: MT2
Drill Head Motor Rating: 1 HP
Spindle Speed Range: 4 speeds ranging from 510 to 2850 rpm
Maximum Spindle Stroke: 20 mm
Power Source: Electric
Automatic Grade: Automatic
Material: Metal
The machine's sturdy construction ensures vibration-free operation, enhancing precision and surface finish. Its versatility allows for the creation of accurate holes in various materials, making it a valuable asset in our machining capabilities.
ABOUT US
Founded in the year 2000, Ram Engineering has been a trusted name in CNC machining for over two decades. Based in Coimbatore, we have built a strong reputation for delivering precision-engineered components and machining services to clients across India. Our commitment to quality, reliability, and continuous improvement has enabled us to serve a diverse range of industries with consistent excellence. At Ram Engineering, we combine experience with modern manufacturing practices to meet the evolving needs of our customers nationwide.
Our Specialities
At Ram Engineering, we take pride in the parts we make and the industries we support. Over the years, we’ve developed deep expertise in machining components that demand precision, reliability, and performance. Whether it’s a single custom part or bulk production, we bring the same level of care and craftsmanship to everything we do.
We specialize in:
-
Pumping Industry Components – Precision-machined parts for industrial and domestic pumps.
-
Automotive Components – High-quality parts tailored for the automobile sector.
-
Gear Machining – Custom and standard gears with tight tolerances.
-
Vacuum Pump Rollers – Durable, high-performance rollers for vacuum pump applications.
